Stationary Welding Vapour Suction Chemistry Odour 1.1kW
| Art. Nr. | CF Eco Jet Pulse |
|---|---|
| P-560A | CF-Eco Active Carbon – 1.1kW/1Phase/230V/50Hz |
| P-561A | CF-Eco Active Carbon – 1.1kW/3Phase/400V/50Hz |
| P-541 | Polyester fine filter |
| P-544 | HEPA Filter |
| AK-002 | Active Carbon Filter |
Stationary Welding Vapour Suction Chemistry Odour 1,1kW
CF-Eco Active Coal
The CF-Eco Active Carbon filter is designed for use in combination with the Flexi extraction arms. With a filter efficiency of up to 99.9%, CF-Eco is suitable for filtering odours and vapours in the chemical and pharmaceutical industries. The clean air is recirculated into the room without heat loss.
Jet-Pulse filter cleaning
The Jet-Pulse filter cleaning ensures that the extraction remains optimal. The filter cleaning system cleans the cartridge in a few minutes. After cleaning, the tray in the unit can be emptied and the CF-Eco is ready to use again.
Replaceable filter cartridge
Filtration takes place in two steps; pre-separation of coarse particles and filtration of fine particles with a replaceable filter cartridge. Replacement is easy and only takes a few minutes because of the front access panel. The remaining very fine dust, if present, can be separated by a HEPA filter. HEPA filter is optional.
HEPA filter
CF-Eco Active Carbon can be equipped with a HEPA filter as an accessory when used for stainless steel welding/soldering.

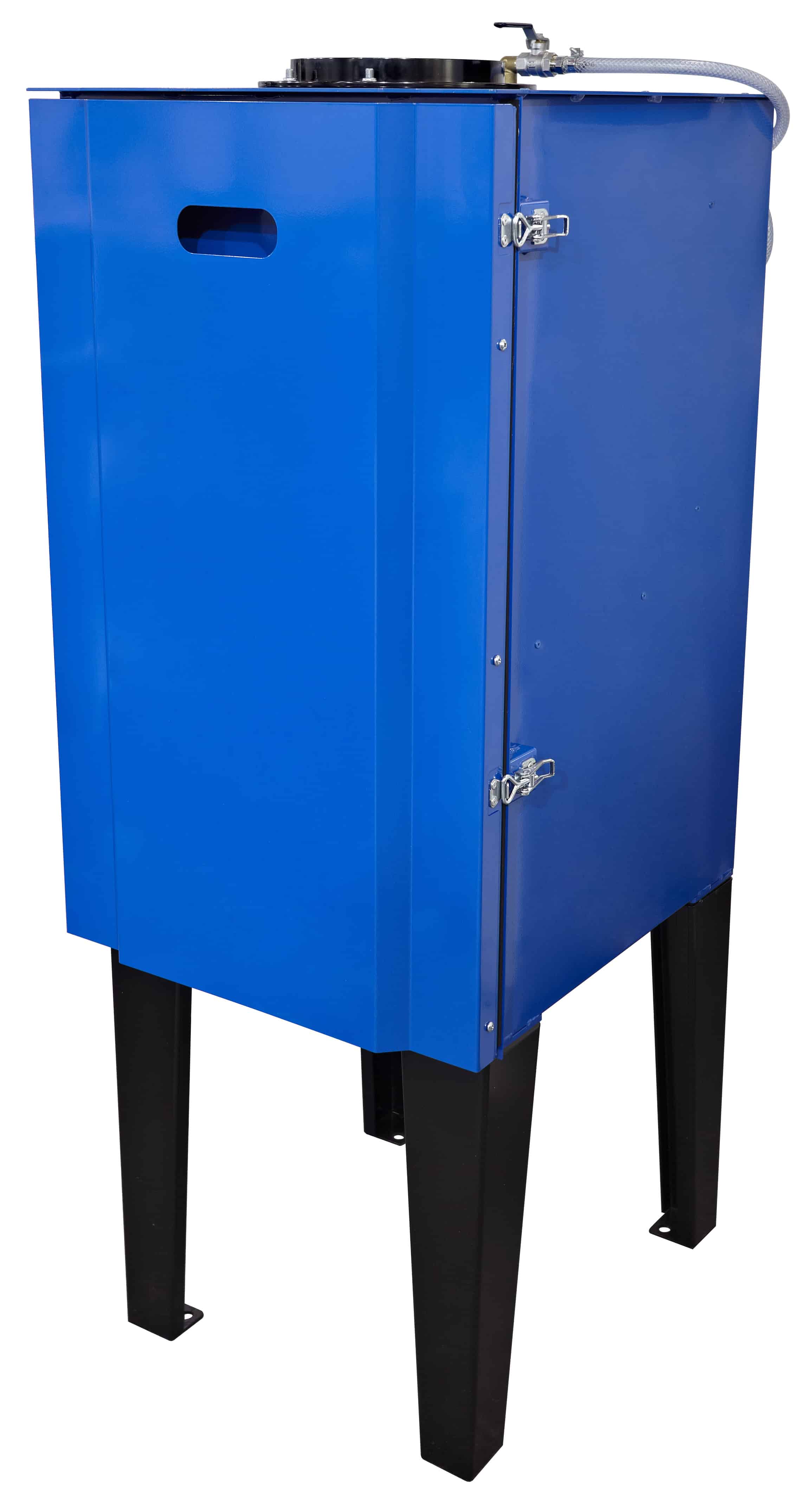

A compact total solution
The CF-Eco for the chemical and pharmaceutical industry is made of powder coated sheet steel. The suction is at the top of the cabinet. The CF-Eco can be connected to a central extraction system.
The dimensions are 1305mm x 500 x 595 mm. (hxwxd).
The weight: 85 kg.
The air volume is 2000 m3/h
The noise level is 70 dB
Filter area is 14m2
