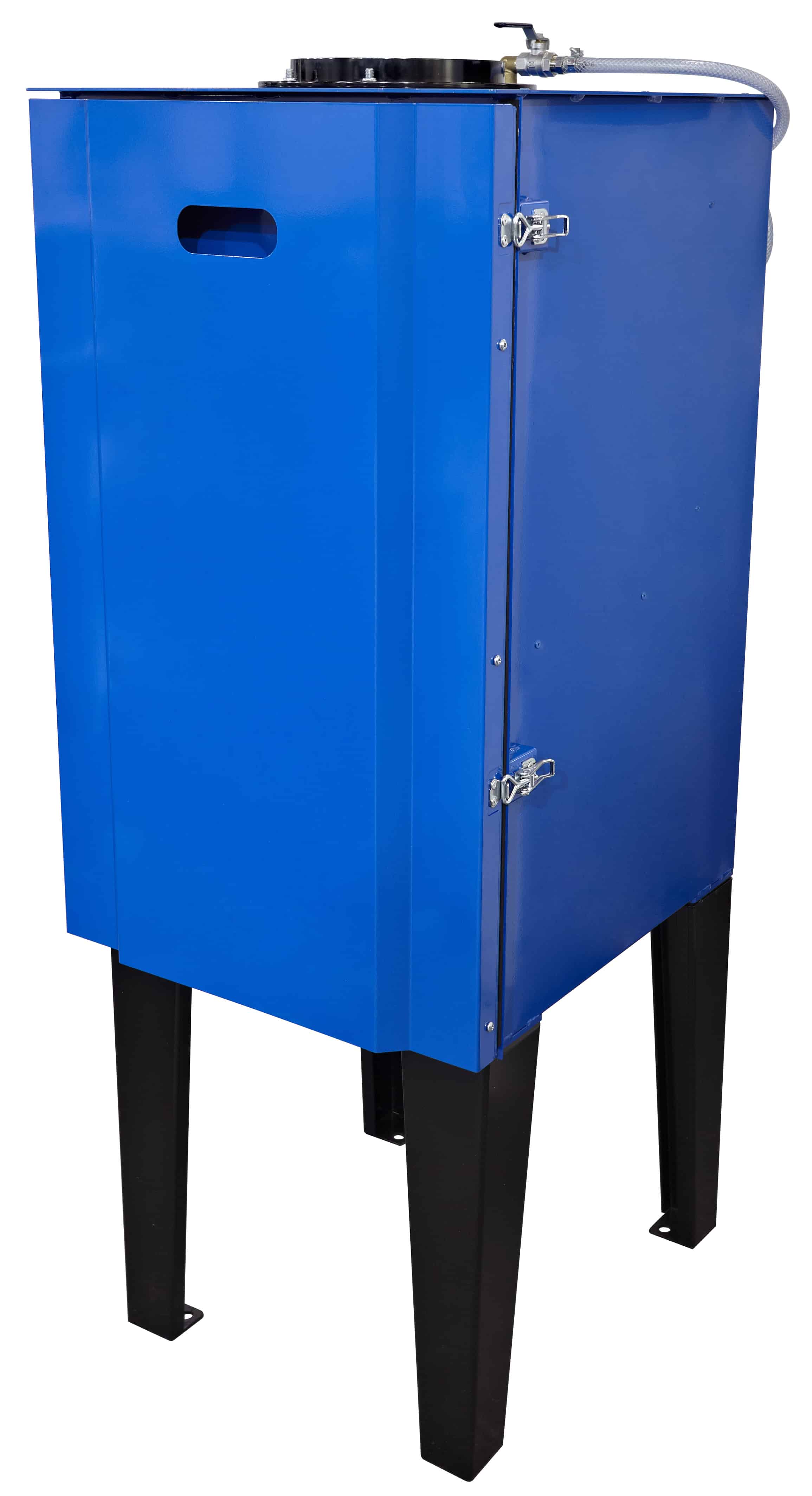

Stationary Welding Fume Extractor Laboratories Fumes 1.1kW
CF-Eco
The CF-Eco filter is designed for use in combination with the Flexi extraction arms. With a filter efficiency of up to 99.9%, the CF-Eco is suitable for filtering fumes in laboratories. The clean air is recirculated in the laboratory without heat loss.
Replaceable filter cartridge
Filtration takes place in two steps; pre-separation of coarse particles and filtration of fine particles with a replaceable filter cartridge. Replacement is easy
and only takes a few minutes because of the front access panel. The remaining very fine dust, if present, can be separated by a HEPA filter. HEPA filter is optional.
A compact total solution
The CF-Eco for laboratories is made of powder coated sheet steel. The suction is at the top of the cabinet. The CF-Eco can be connected to a central extraction system.
The dimensions are: 1305mm x 500 x 595 mm. (hxwxd).
Weight: 85 kg.
The air volume is 2000 m3/h
The noise level is 70 dB
Filter area is 14m2
Jet-Pulse filter cleaning
The Jet-Pulse filter cleaning ensures that the extraction remains optimal. Filter cleaning cleans the cartridge in a few minutes. After cleaning, the tray in the unit can be emptied, and the CF-Eco is ready for use again.
HEPA filter & Active Carbon Filter
CF-Eco can be equipped with a HEPA filter as an accessory when it is used for stainless steel welding/soldering and/or Active Carbon Filter for filtering odours and fumes.
