Laboratory DC 1800 eco
| Specifications DC 1800 eco | |
| HxWxL mm | 740 x 380 x 380 |
| Mass | 10 kg |
| Intake/Exhaust | Ø 50 mm |
| Hose length | 5 m ( Ø38) |
| Max vacuum pressure | 24 kPa |
| Max air flow | 190 m³/ hour |
| Power | 1285 W, 230 V |
| Surface fine filter | 1.5 m² |
| Collection efficiency fine filter | 99.9 % |
| Collection efficiency HEPA filter H13 | 99.995% |
| Surface HEPA filter | 0.85 m² |
| Collection capacity | 15 L |
| Sound level | 66 dB (A) |
| Extra option | autostart |

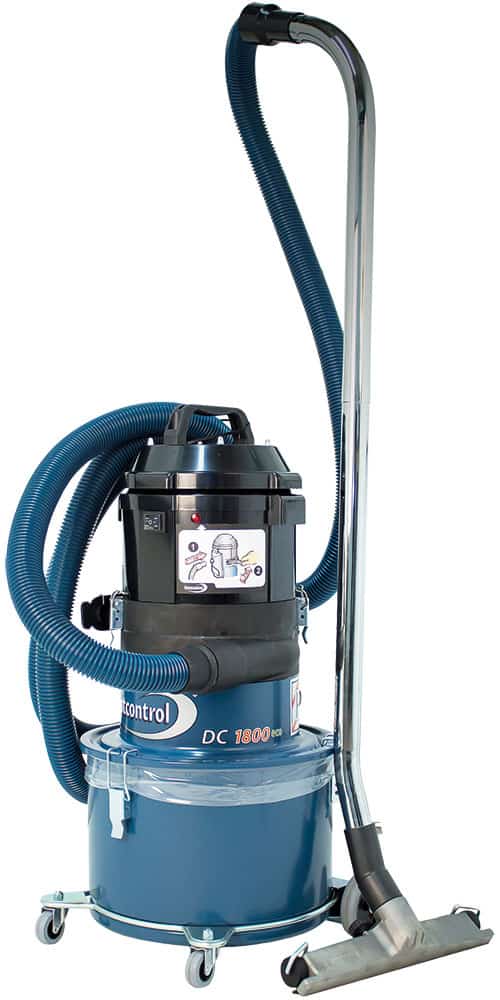

DC 1800 eco Mobile dust extractor with steel container
Powerful mobile dust extractor suitable for source extraction and cleaning in heavy circumstances in the laboratorial industry. Also suitable for extraction of substances that can present a health hazard.
The dust extraction in the filter unit takes place in three phases. Because of the filter unit cyclone the dust particles that are at least 10 µm. in size are extracted. The dust is then filtered by a cartridge filter. The remaining very fine dust, if still present, will be extracted with the help of a micro filter (HEPA13) with 99.995% dust collecting efficiency.
The filter unit can be cleaned manually through the so-called reverse-pulse system. The conical shape of the filter and the highly effective cleaning method guarantee a long life span for the collector and long lasting maximal suction power. The vacuumed material is collected in a synthetic bag underneath the unit. The filters can be changed dust free.
Equipped with the new eco technology, for lower energy consumption and higher efficiency.
Click here for this extractor in ATEX edition.
Product leaflet Dustcontrol DC 1800 Eco ATEX
User manual, parts and drawing
Dustcontrol DC 1800 Eco
