CLEANING

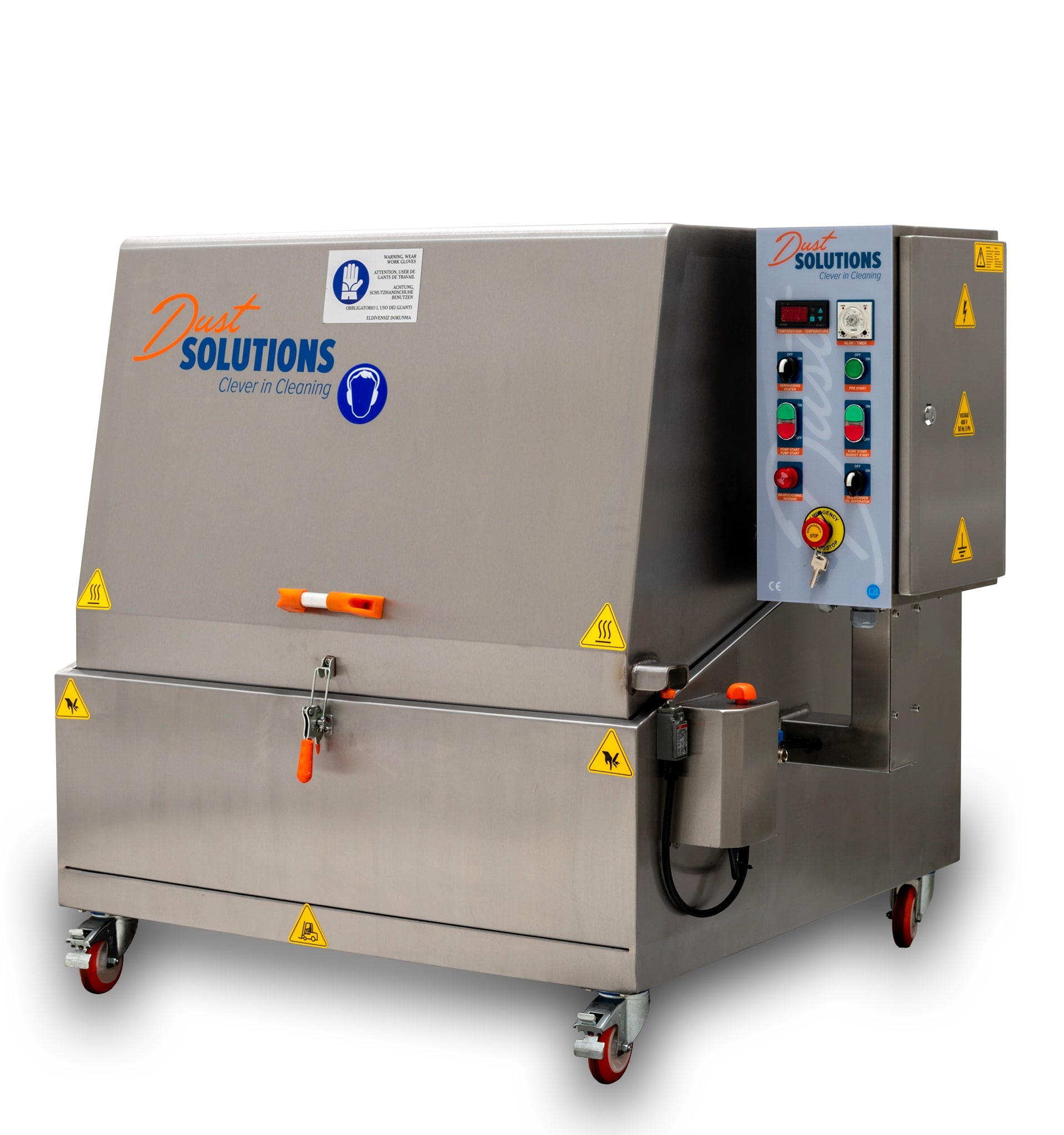

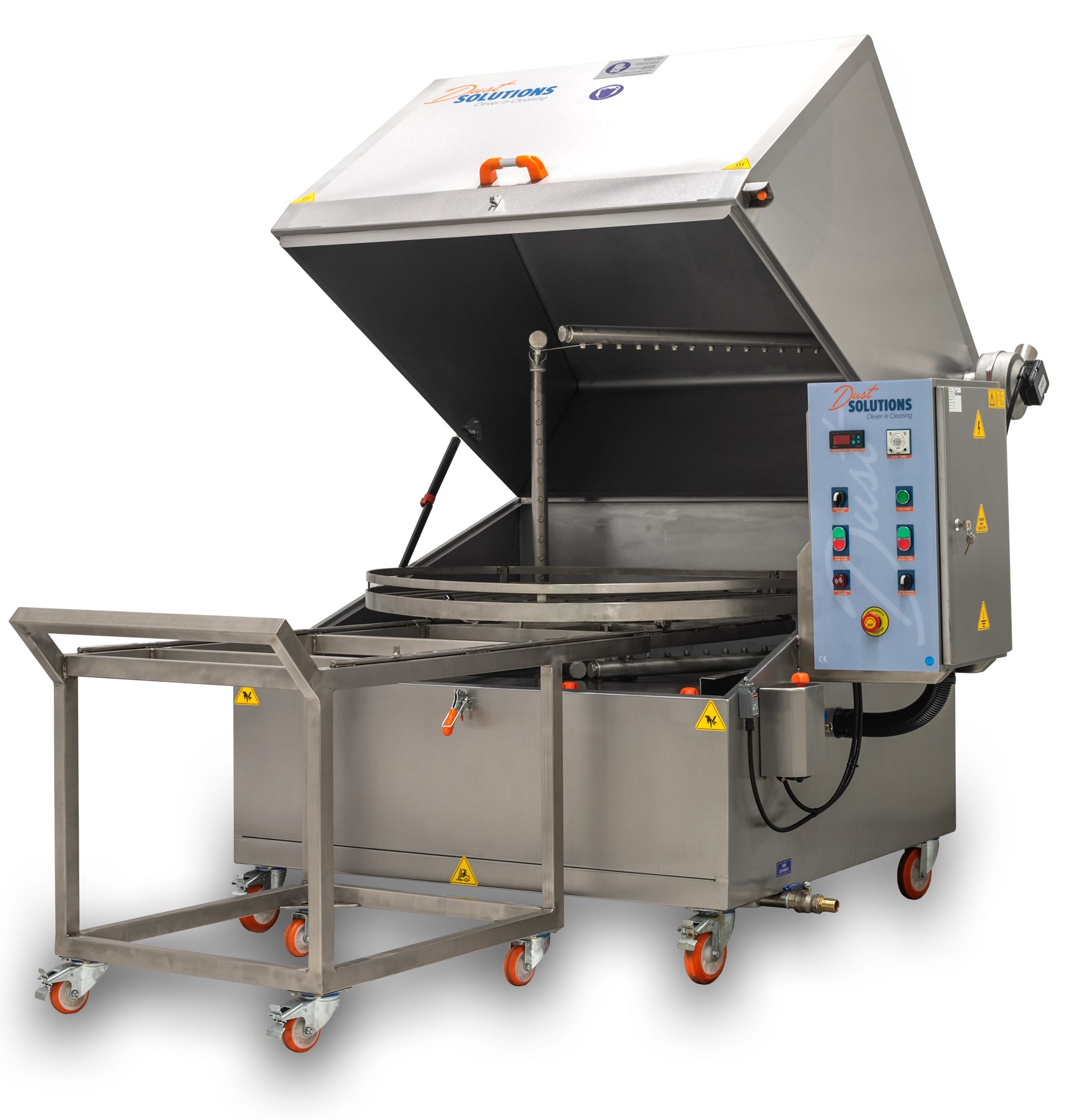

Top loader washer DS Serie
Industrial spray wash cabinets & cleaning machines by Dust Solutions
Eco-friendly cleaning, rinsing, degreasing and phosphating with TOPFRONTWASH industrial cleaning machine or degreasing machine.
Clever in cleaning
The Top loader DS spray cleaner makes all other costly and time-consuming cleaning methods obsolete. The DS Serie has a loading basket with max. 1150 mm diameter range and is extremely suitable for cleaning parts in industrial and maintenance workshops, at minimal costs. This surprisingly effective cleaning method is made possible by a combination of spray pipes, a large amount of hot water / soap solution and rotation. This combination will clean the dirtiest objects in 5-12 minutes. This happens automatically, inside the fully closed system. The DS Series washing machine works with a closed circulation of washing fluid, in which the fluid is filtered and recycled. The washing fluid consist of 95%- 98%water and of 2%- 5%alkaline detergent. The temperature of the solution ranges from 50 to 80 degrees Celsius, dependent on how dirty the parts are.
The DS Series always comes with an oil skimmer and a load basket.
All TopFrontWash models are always equipped with high-quality AISI 304 stainless steel and energy-efficient tank isolation.
An automatic loading system is optional.
Dust Solutions industrial cleaning machines are used in a wide range of sectors:
- Metal processing industry
- Electronics industry
- Automotive industry
- Engine overhaul industry
- Chemical and Petrochemical industry
- Graphics industry
- Defence industry
- Transport industry
- Railways
- Medical industry
- Food industry
- Aviation
| Model | DS 650 | DS 850 | DS 100 | DS 1250 |
|---|---|---|---|---|
| Basket Diameter (mm). | 550 | 750 | 900 | 1150 |
| Loading Height (mm.) | 250 | 350 | 450 | 600 |
| Loading Capacity (kg) | 150 | 150 | 300 | 450 |
| Tank Capacity (lt) | 60 | 60 | 80 | 200 |
| Pump Pressure (bar) | 2,5 | 2,5 | 2,5 | 3 |
| Pump Quantity and Power | 1 piece x 3,0 Hp | 1 piece x 3,0 Hp | 1 piece x 3,0 Hp | 1 piece x 3,0 Hp |
| Heater (Kw) | 5 | 7,5 | 7,5 | 15 |
| Electricity (V/Phase/Hz) | 230-380-415/3-1/50-60 | 230-380-415/3-1/50-60 | 230-380-415/3-1/50-60 | 230-380-415/3-1/50-60 |
| Process Timer (min.) | 0-30 | 0-90 | 0-90 | 0-90 |
| Working Temperature | 0-90°C | 0-90°C | 0-90°C | 0-90°C |
| Loading Vehicle | Not avaiable | Not avaiable | Standard | Standard |
| Rotary Basket | Standard | Standard | Standard | Standard |
| Oil Skimmer | not available | not available | Standard | Standard |
| AISI 430 Stainless Steel Body | standard | standard | standard | standard |
| AISI 304 Stainless Steel Body | optional | optional | optional | optional |
| AISI 316 Stainless Steel Body | not available | optional | optional | optional |
| Packing Size and Weight (mm / Kg) | 920 x 820 x 1200 150 Kg | 1260 x 950 x1300 230 Kg | 1450 x 1080 x1340 300 Kg | 1750 x 1310 x1650 440 Kg |
